12 Socket Connector with 6 Switched
Product ID: BE296SM

12 Socket Connector with 6 Switched

Discounts Apply !
Brand: Bromley Craft Products
Price: £23.95
27.35 EUR 29.72 USD
Quantity:
+
-
  • Description
  • Reviews

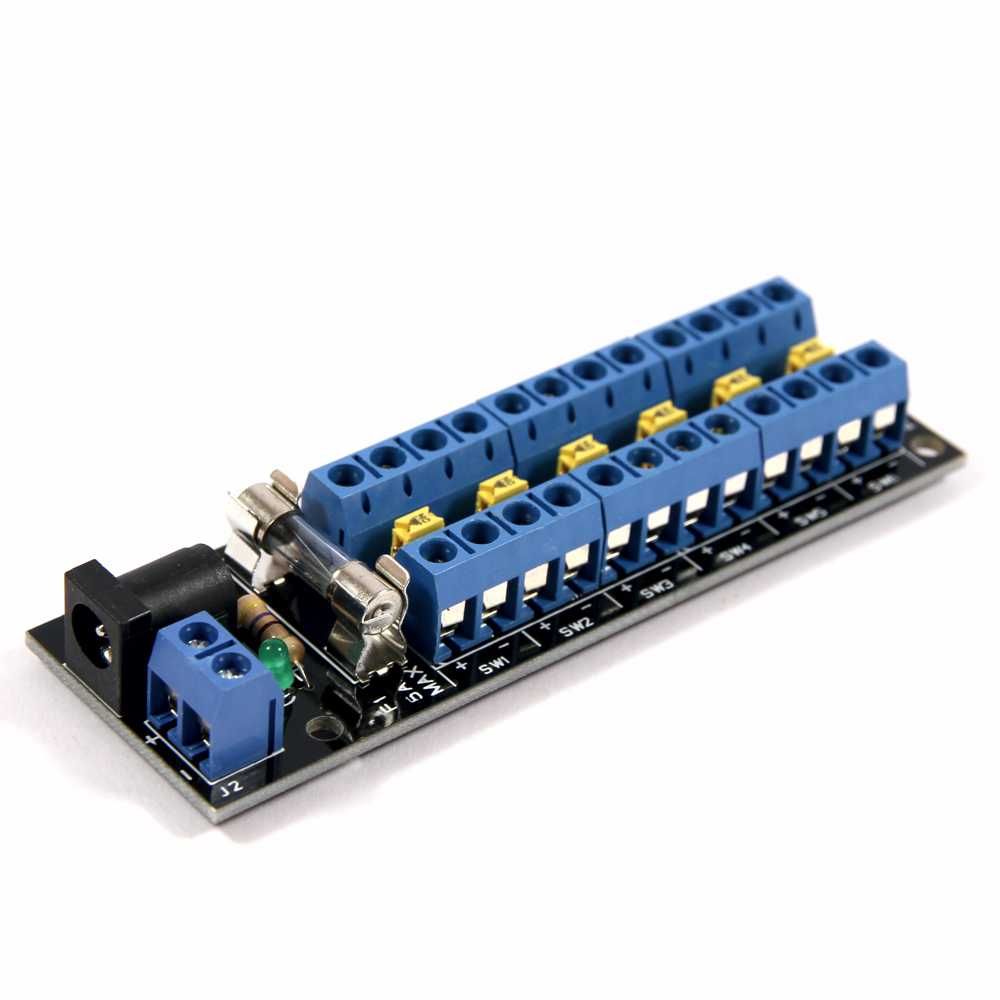

Dolls house lighting connector strip with 6 switched and 6 non-switched outputs. Includes 2.5A fuse and LED power indicator light.

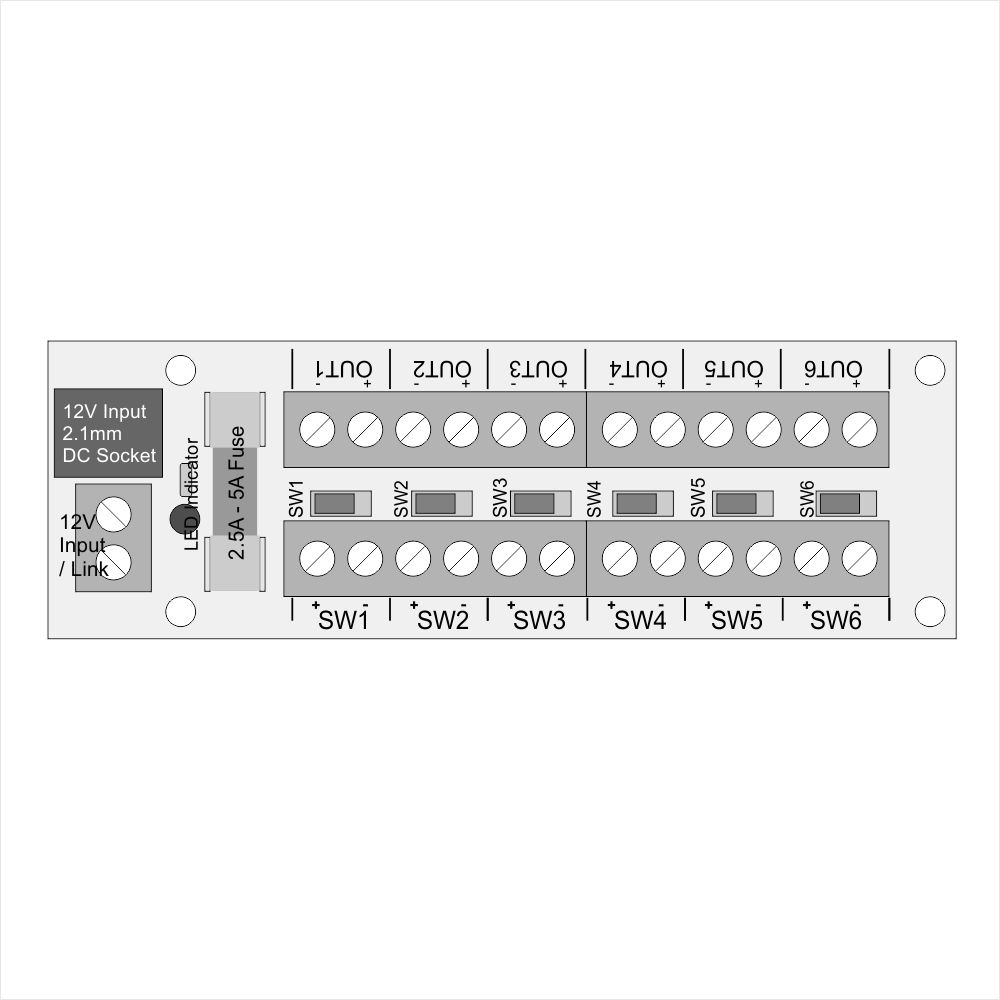

There are 6 pairs of  (+/-) output terminals, each controlled by its own on/off switch allowing lights in the dolls house to be switched on and off independently.  Plus an additional 6 pairs of non-switched (always on) outputs, making 12 pairs of output terminals in total.

This socket strip connector has a 2.1mm connector socket which is directly compatible with our Digital Power Supplies (PS100, PS200, PS300 & PS500).  Alternatively the two screw terminal input next to the 2.1mm socket can be used to connect other types of power supply.  These screw terminals can also be used to link additional socket strips in large systems where more output channels are required.

To install dolls house lighting simply connect a 12v power supply (transformer) and connect twin wires from lights to the output +/- screw terminals.

The two pin plugs supplied with most dolls house lights are not needed when using this connector.  This is a major advantage of this system as the 2 pin plugs can be difficult to use and don't always provide a reliable connection.

Maximum power input: 12V DC 5A

Maximum power output:  5.0A total between all channels. Max. 1.0A per channel.

Fuse included: 2.5A (20mm x 5mm).

Dimensions (WxL): 94mm x 30mm.
