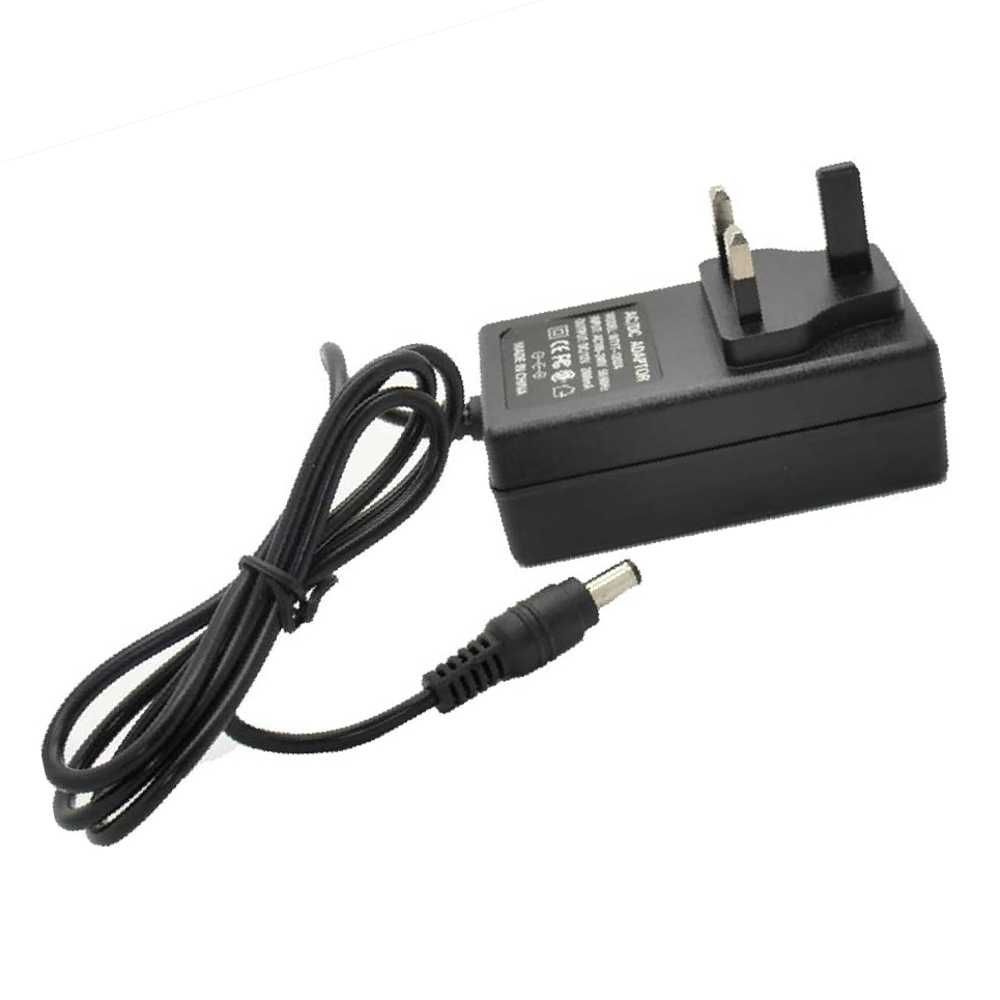

12V DC regulated 3A power supply for dolls house lighting circuits.
Suitable for medium to large dolls houses with up to 45 screw-in or 60 wire-ended bulbs.
Connector Options
- The output lead has a 2.1mm plug for easy connection to corresponding socket connectors. Recommended for use with connector strips BE295, BE296, BE296S, BE297, BE297S.

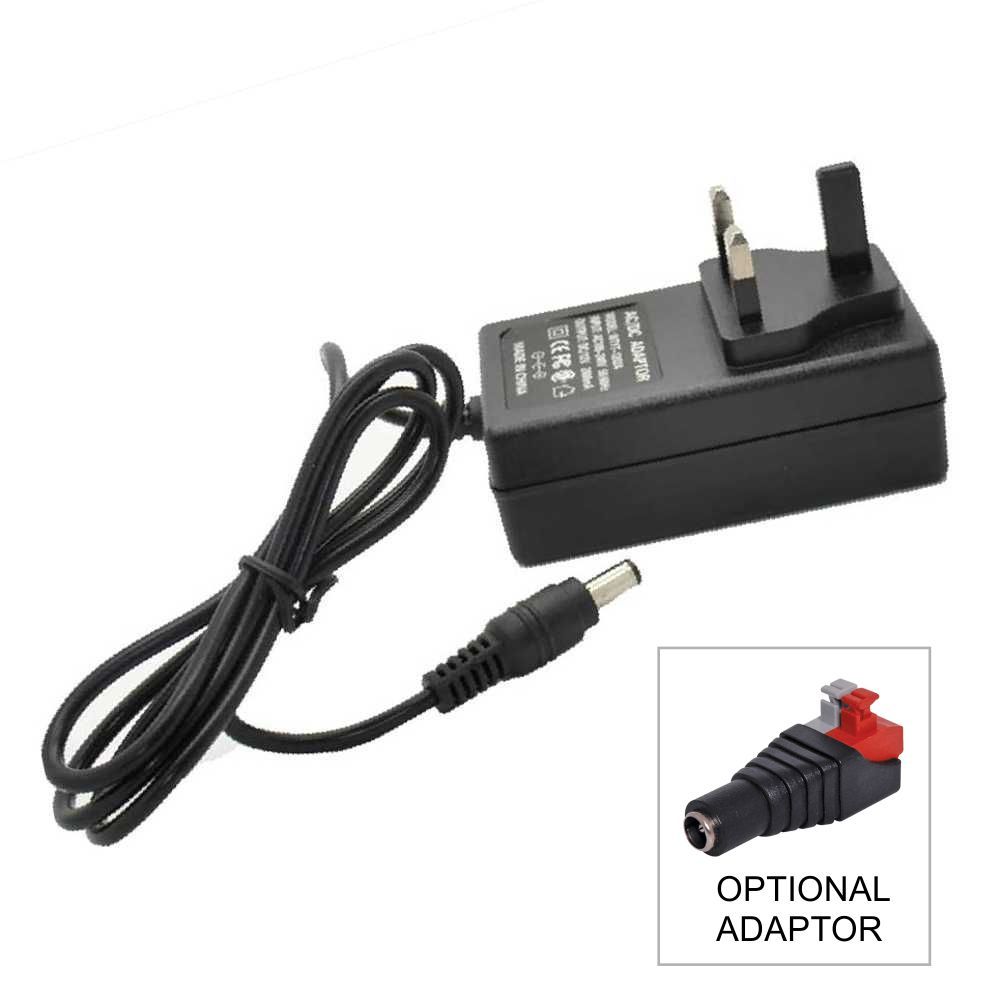

- Choose the optional Connector Adaptor for wired connections. This is recommended for use with connector strips DE074, 9244 & 7285.
Specifications
Input: 90 - 264 V, 47 - 63 Hz
Output: 12 V, 3.0 A (36 Watt)
Suitable for UK plug sockets.
Digital Switching; Regulated output
Overload protected.
Meets the latest European energy efficiency regulations.
Optional Adaptor rated up to 48V / 8A
Important Safety Information
Dolls house wiring and lighting components are generally rated for 1.5A - 2.0A. This power supply should only be used with a suitably fused connector strip. If exceeding 1.5A - 2.0A load, this should be split between separate fuse protected circuits to avoid overloading wiring and components. Do not attempt to install dolls house wiring systems without suitable knowledge and experience. Do not leave dolls house lighting switched on unattended. Switch power off at the wall when not in use or when unattended.
